Concrete Mixer Mixing Arms

Name: Mixing Arm
Materials: Nodular cast iron or casting steel
Applicable mixers: Twin shaft mixer, pan mixer, planetary mixer, vertical mixer, concrete mixer, cement mixer, asphalt mixer, etc. of various brands
Customizable or not: Customizable; tailor made to customers' drawings or samples
Advantage: Highly abrasion resistant
Service life: Enough time for mixing about 200,000 CBM concrete

Mixing arm is one of the indispensably important concrete mixer wear parts which are responsible for most of the mixing, from top to bottom. As a specialized manufacturer of construction machinery parts, Casting parts takes pride in supplying custom-made mixing arms for a various brands of concrete mixers including SANY, ZOOMLION, AMMANN, SPECO, DG, MARINI, BENNIGHOVEN, LINTECH, NFLG, ACP, SICOMA, XCMG, Teka, Fangyuan, BHS, Huajian, Shaoguan, JS, etc.

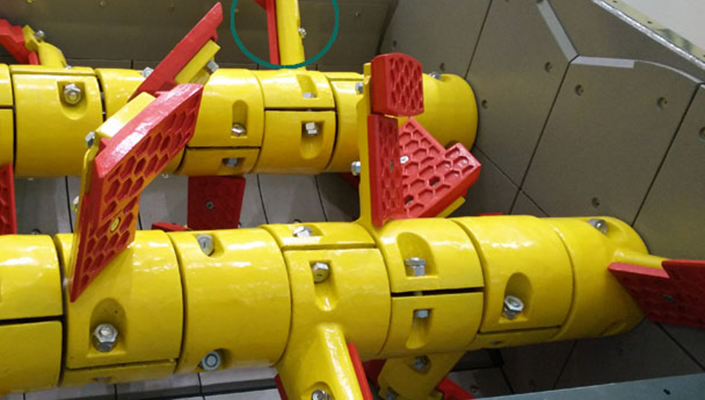

Mixing Arm Structure

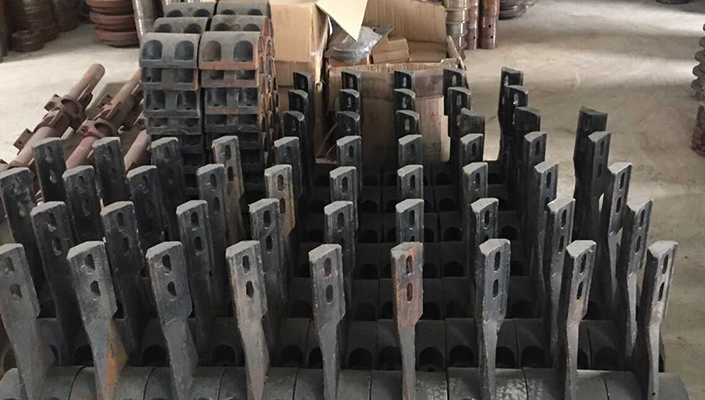

Samples Show

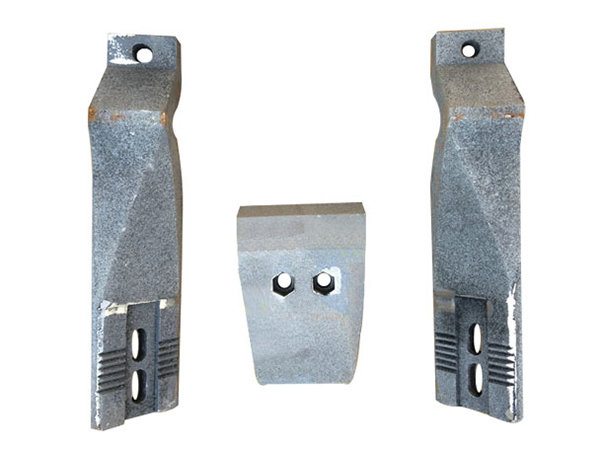

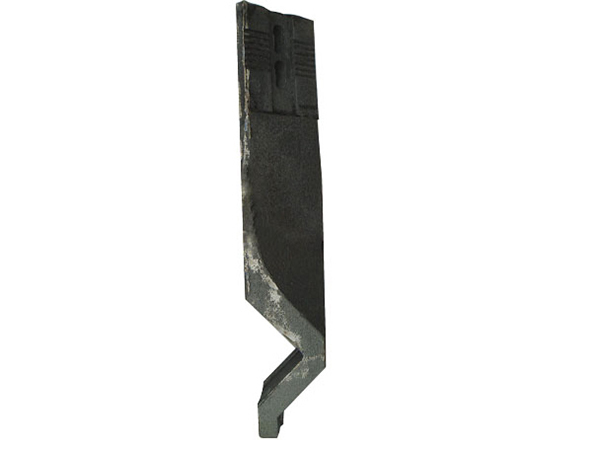

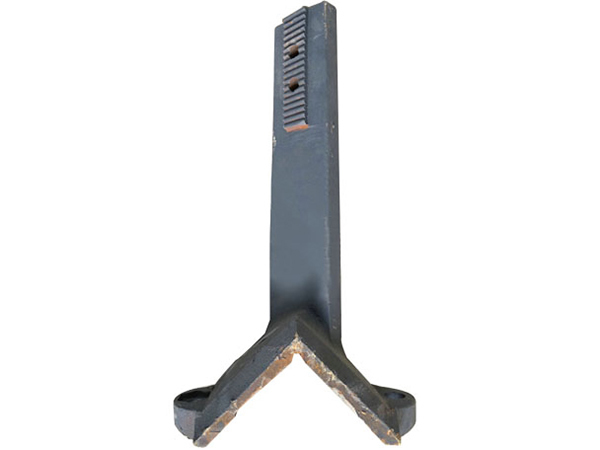

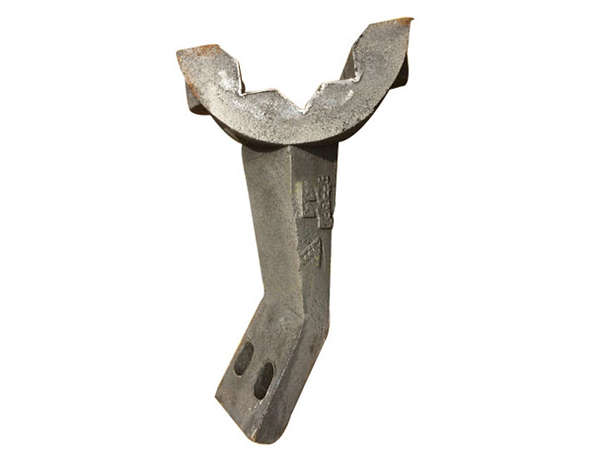

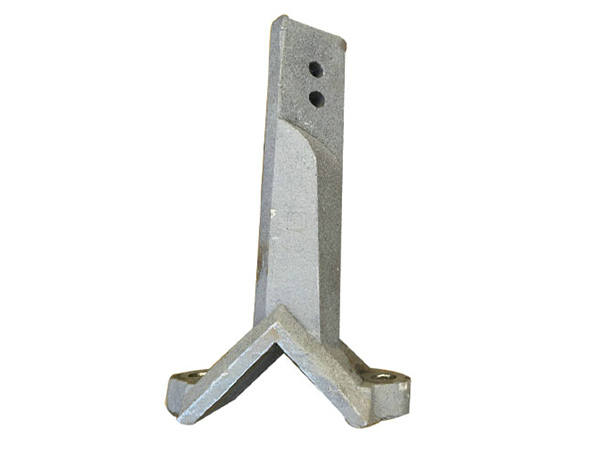

  • Mixing arm for ACP concrete mixer

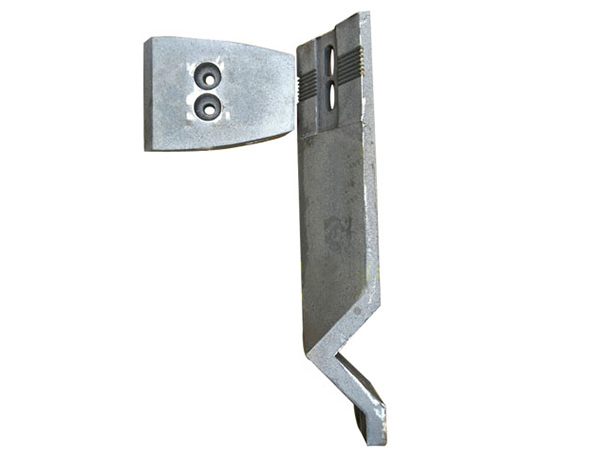

  • Mixing arm for SPECO concrete mixer

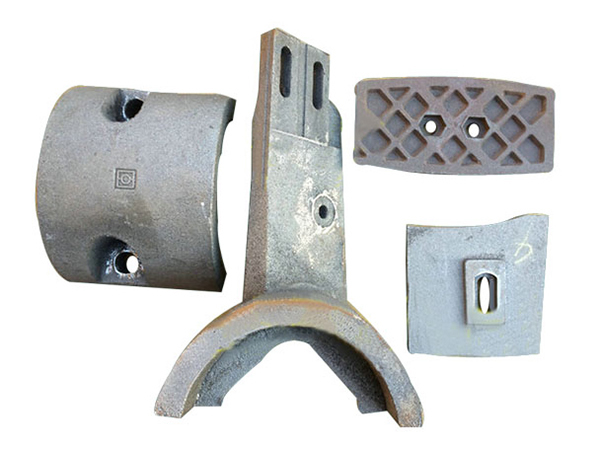

  • AMMANN3000 concrete mixer mixing blade, liner plate and mixing arm

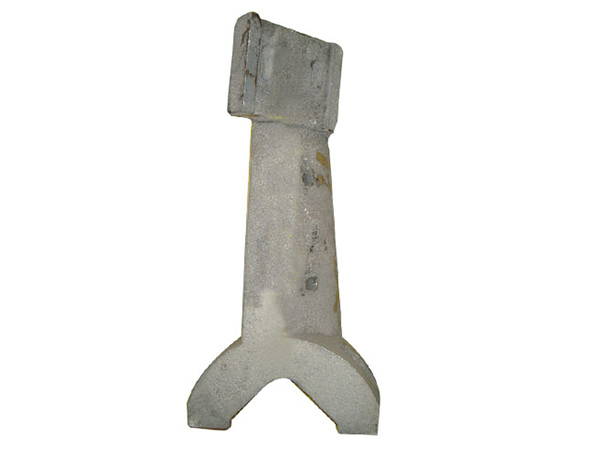

  • XCMG concrete mixer mixing arm
  • XCMG concrete mixer mixing arm

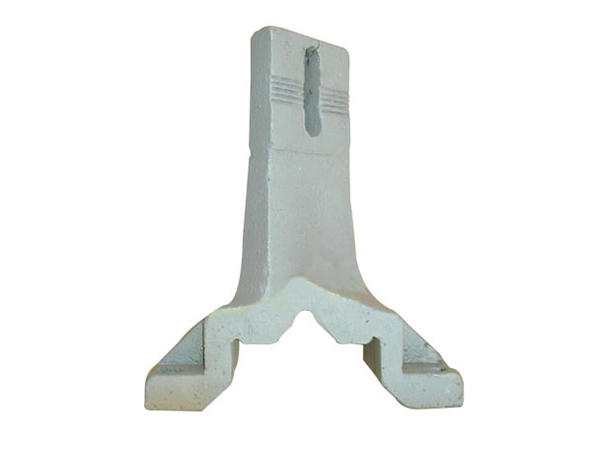

  • DG concrete mixer mixing arm
  • Mixing arm for XITONG concrete mixer

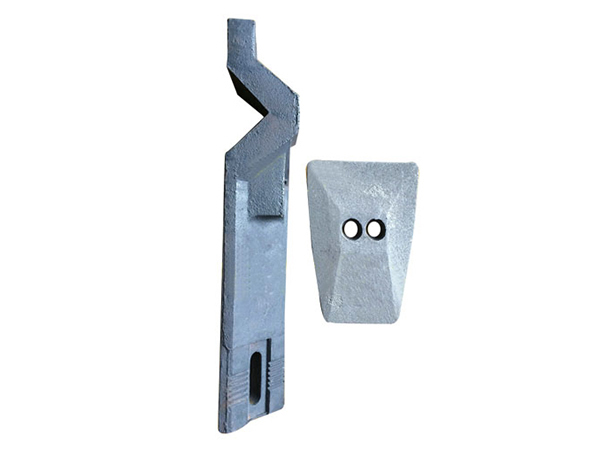

  • Mixing arm for LINTECH concrete mixer
  • Mixing arm for MARINI concrete mixer
  • Mixing arm for BENNIGHOVEN concrete mixer
Technical Specifications
Hardness 52-62HRC
Life more than 200000 cubic meter concrete or 300000 tons asphalt
Standards CN:KM TB Cr 15-25-GTUS:ASTM A532 Class Two Type D
Extension strength 380 N/mm2
Elongation at break 1%
Shock impact (resistance) value >5 ak N.M/CM2
Flexural strength >600 ak N.M/CM2
Certifications ISO9001:2008,ce
Metallographic organization M+M7C3+M23C6
Process Lost Foam Casting
Chemical Compositions
Name Chemical Compositions % Hardness
C P S Si Mn Cr Ni Mo Cu
Special high chrome steel 2.8~3.1 <0.06 <0.06 0.8 0.8 22 <1 <1 <0.5 62
High chrome steel 2.8~3.1 <0.06 <0.06 0.8 0.8 15 <0.5 52
Low chrome steel 2.8~3.1 <0.06 <0.06 0.8 0.8 3 48
High manganese steel 1.2 <0.06 <0.06 16 45
Alloy steel casting 1.2 <0.06 <0.06 2 1 45
