Blow Bars and Hammers

  • Impact Crusher
  • Impact Crusher

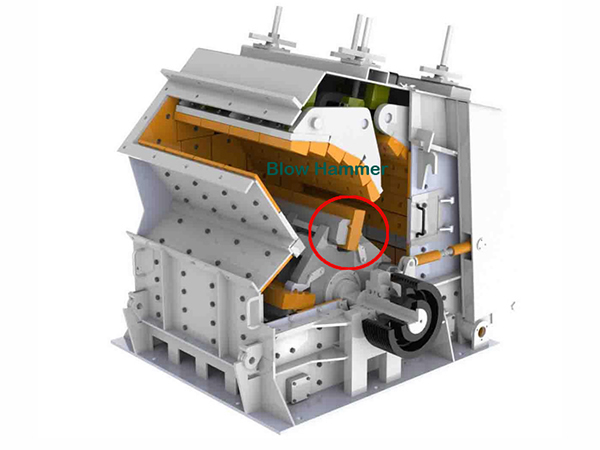

Name: Blow Bar and Hammer
Applicable machine: Impact crusher
Raw materials: High manganese steel, advanced composite material, modified high manganese steel, new type high manganese steel, alloy steel, bimetal composite, austenite wear resistant manganese steel
Applications: The blowbars are our highly wear resistant crusher consumables designed for various kinds of impact crushers. These mining machinery parts are used for the fine and medium fine impact crushing of medium hardness materials such as limestone, furnace slag, coke, coal, etc. in cement, chemical, power, metallurgy and other industries.
Customized or not: Yes
Parts model: 1210, 1315, 1214, 1010
Order quantity: Based on customer's needs

  • Blow Bars
  • Blow Bars
Technical Parameters of Applicable Impact Crusher
Models Specs (mm) Feeding port (mm) Max. Feed particle size (mm) Capacity (t/h) Power (Kw) Dimensions (mm) Weight (t)
PF-0807 ø850×700 400×730 300 15-30 30-45 2210 ×1490 ×2670 8.1
PF-1007 ø1000×700 400×730 300 30-50 37-55 2400 ×1558 ×2660 9.5
PF-1010 ø1000×1050 400×1080 350 50-80 55-75 2400 ×2250 ×2620 12.2
PF-1210 ø1250×1050 400×1080 350 70-120 110-132 2690 ×2338 ×2890 14.9
PF-1214 ø1250×1400 400×1430 350 130-180 132-160 2690 ×2688 ×2890 18.6
PF-1310 ø1300×1050 490×1170 400 80-140 110-160 2780 ×2478 ×2855 16.2
PF-1315 ø1320×1500 860×1520 500 160-250 180-260 3096 ×3273 ×2667 19.3
PF-1415 ø1450×1500 1145×1520 950 220-450 220-315 3745 ×3022 ×3519 27
PF-1520 ø1520×2000 830×2050 700 300-550 315-440 3581 ×3560 ×3265 36.5
